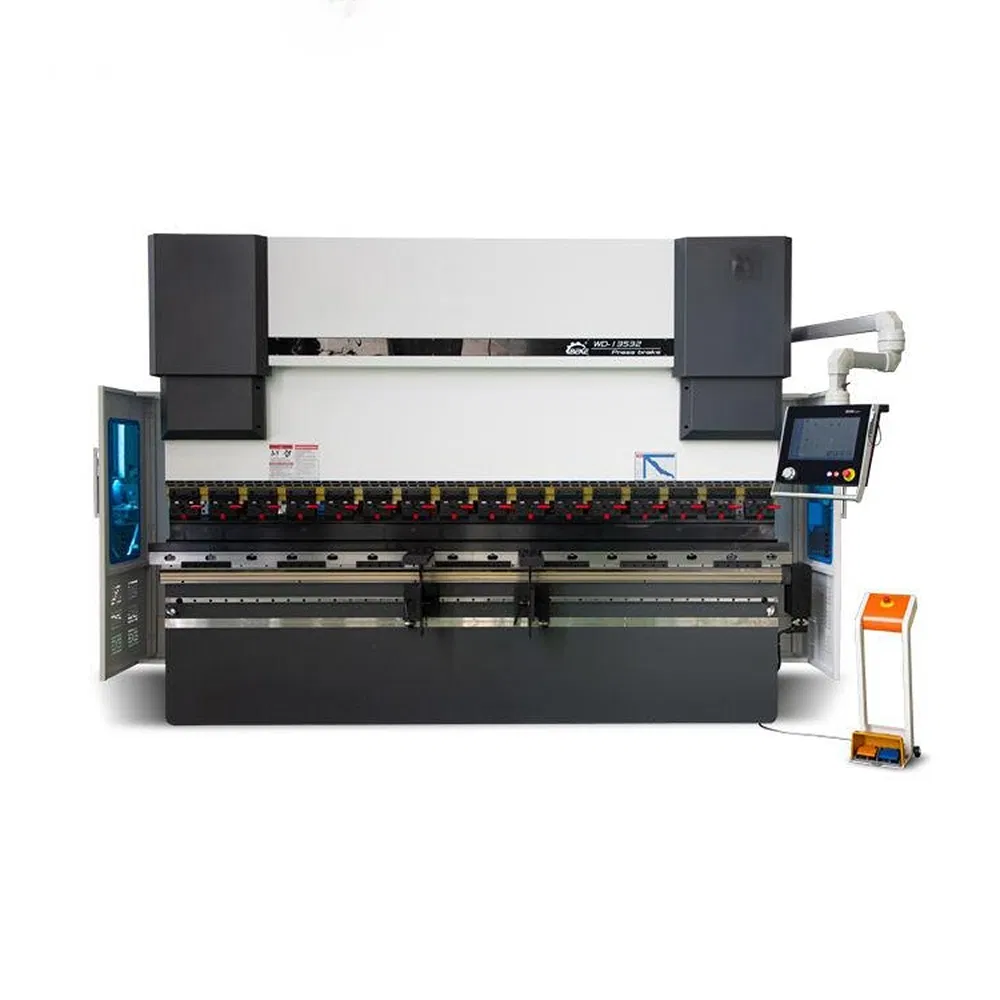

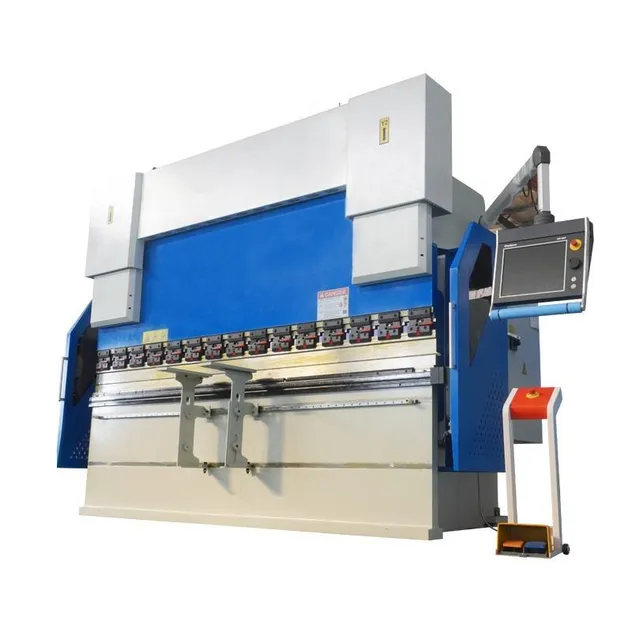

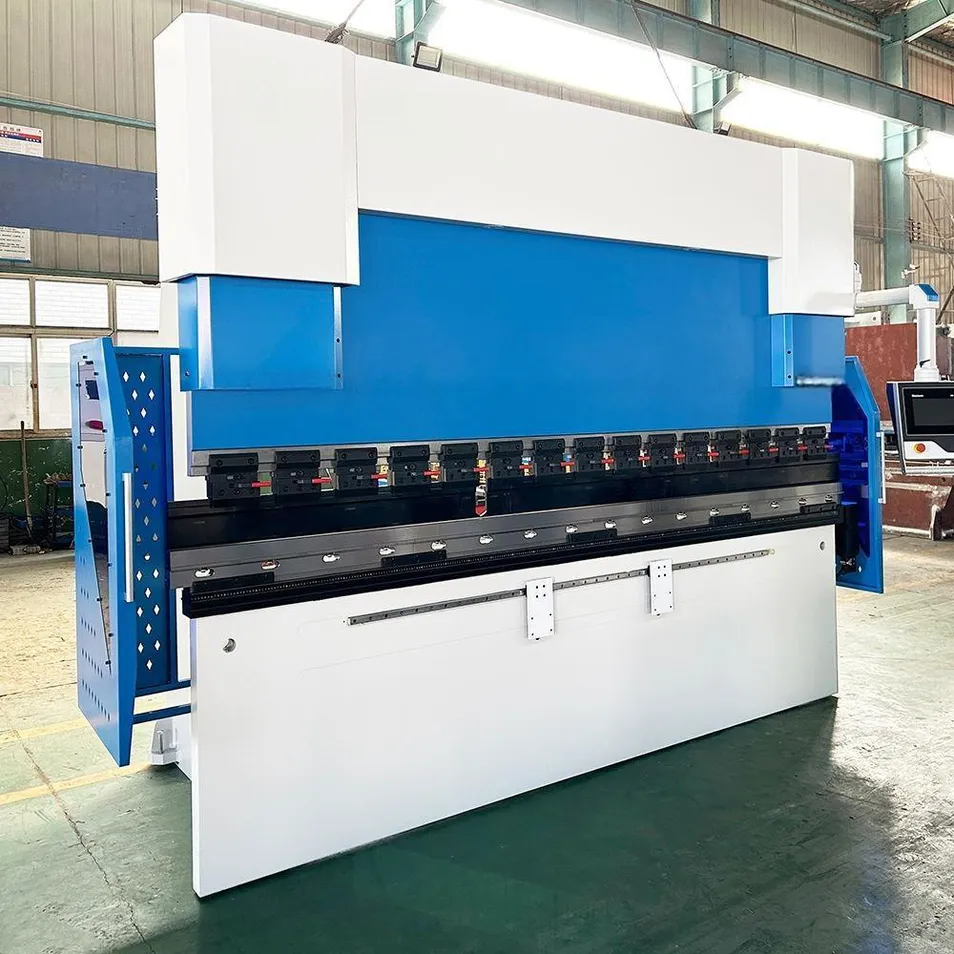

Our advanced hydraulic press brake represents the pinnacle of modern metal fabrication technology, combining exceptional precision with robust 110-ton bending capacity to deliver superior performance across demanding industrial applications.

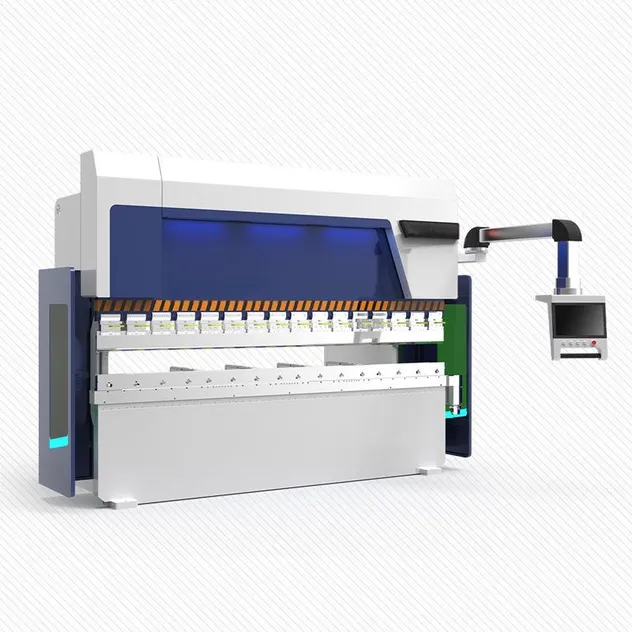

This professional-grade CNC press brake is expertly engineered with state-of-the-art servo-driven control systems, ensuring unmatched accuracy and repeatability for complex sheet metal bending operations.
Whether you're working with stainless steel components, copper busbars, or carbon steel sheets, this versatile hydraulic bending machine adapts seamlessly to your fabrication requirements.
| Model | JC15 | JC25 | JC32 | JC41 | JC51 | JC61 | JC-Tandem |
|---|---|---|---|---|---|---|---|
| ProcessLength | 1500mm | 2500mm | 3200mm | 4100mm | 5100mm | 6100mm | 6000mm-12000mm |
| Pressure(kN) | 400kN | 800kN | 1100kN / 1700kN / 2500kN | 1100kN / 1700kN / 2500kN / 3200kN | 1600kN / 3200kN | 2500kN / 3200kN | 2500kN / 3200kN |
| Pressure(Tons) | 40 tons | 80 tons | 110 tons / 170 tons / 250 tons | 110 tons / 170 tons / 250 tons / 320 tons | 160 tons / 320 tons | 250 tons / 320 tons | 250 tons / 320 tons |
| Deflection correction | No Need | No Need | Yes | Yes | Yes | Yes | Yes |
| Precision | Y1+Y2+X+R+V, 4+1 Axis Automatic Correction | - | |||||
| Process | Angle bending, Arc bending, Flattening (Need different bottom mold) | - | |||||
| Hydraulic system | High-performance dual-pump hydraulic system | - | |||||
| Control System | Germany MT15 CNC Control system, multi-step programming | - | |||||
| Precision Calibrate | Electro-hydraulic servo calibrate | - | |||||
| Frame | Machine frame integral welding | - | |||||
| Clamp | Quick-release clamp for the upper mold | - | |||||
| Measure | GI-VI magnetic railing ruler | - | |||||
| Electrical parts | Schneider-Electric | - | |||||
| Features | 1. Front bracket, 2. single-sided quick-release upper mold, 3. universal dual-V bottom mold. | - | |||||
| OEM/ODM | Support, Customized Logo, Colors, Sticker. | - | |||||
Our intelligent angle compensation system automatically adjusts for material springback and tool wear, eliminating costly rework and achieving ±0.1mm repeatability that traditional press brakes simply cannot match, solving the industry's most persistent accuracy challenges. This breakthrough technology incorporates real-time material property analysis and adaptive force control, ensuring perfect bends on the first attempt regardless of material variations, operator skill level, or environmental conditions.
This integrated system combines press brake, back gauge, and tool changer in one compact footprint, reducing your capital investment by 40% while increasing throughput by 60% compared to purchasing separate machines from multiple vendors. The seamless integration eliminates manual material handling, reduces setup times from hours to minutes, and provides synchronized operation that maximizes floor space utilization while minimizing labor requirements and operational complexity.
With our predictive maintenance technology and 99.5% uptime guarantee, you'll recover your investment within 18 months through reduced labor costs, eliminated scrap, and maximum production availability that keeps your operations profitable. Our comprehensive service package includes 24/7 remote monitoring, instant technical support, and performance analytics that optimize energy consumption by 25% while extending machine lifespan beyond industry standards through proactive component replacement.
